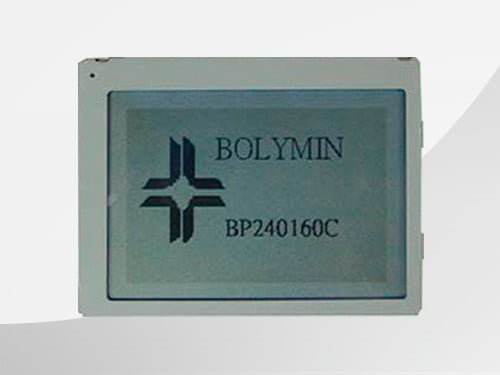

Bolymin BP240160C Graphic LCM TAB IC


» Format 240×160
» Modulgröße 88.2*59 mm
» Sichtfeld 66*46 mm
» Zeichengröße 0.225*0.225 mm
» Controller None
» Interface N/A
» Spannung +3V bis +5V

besondere Eigenschaften

» Grafikdisplay LCD Display Modul mit optionalem Touchpanel.
» Beschreibung: 240 x 160 Format
» 88.2 x 59 Modul
» 66 x 46 Sichtfeld
» 0.225 x 0.225 Zeichengröße (Maße = mm)
» Option: Touch Panel + Decoder
» LCD Color: FSTN
» Backlight: LED, EL
» Backlight color: yellow-green, white
» Controller: None
» Interface: N/A
» Current: +3V – +5V
» View Angle: Bottom and Top
» Operat. Temp.: Normal 0°C – +50°C
» Wide -10°C – +70°C

Beschreibung
