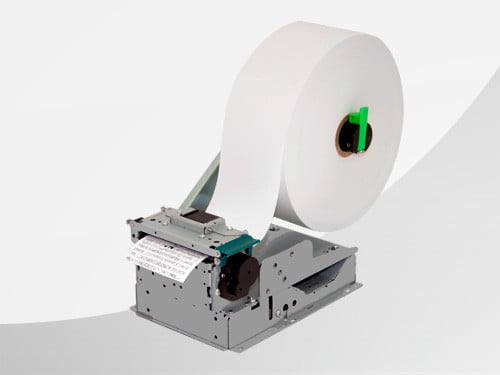

NIPPON PRIMEX NP-2611 Kioskdrucker 58mm & 60mm


» Spannung 24VDC
» Interface RS232, USB
» Temperaturbereich -20 – 60°C
» Geschwindigkeit 250mm/s
» Papierbreite 58mm; 60mm

besondere Eigenschaften

» Compact and Easy Operation
» Gradation: 16 Gray Scale Picturesque Printing
» Lock free cutter
» Openable head
» Large Paper Holder
» High Speed printing : Max. 250mm/sec.
» Paper thickness up to 150 micrometer
» RS232, USB Interfaces
» Advanced printer Driver for Windows, CE6.0, Linux
» With status Monitor and maintenance counter
» Black Mark Peper Sensor
» Download of Character Fonts
» Capable of using presenters
» Option: Transmission sensor for labels is attachable

Paper load: APL = Automatic Paper Load
Printing Method: Thermal line printing
Number of dots/line: 432 dot
Dot Resolution: 8 dots / mm (203dpi)
Paper width: 60 mm
Printing width: 54 mm
Printing Speed: 250 mm/sec
Paper Thickness: 59 – 150 µm
Paper Diameter: max. 150 mm
Data Input: RS 232, USB2.0
Data Buffer: 15 kByte
Column capacity: Font A: 37 columns, font B= 49 columns
Character type: International, English, Greek, Polish, Russian, Scandinavian, Turkish, Chinese, Korean, Japanese
1D-Barcode: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF, CODABAR, CODE128
2D-Barcode: PDF417, QR Code
Cutter: Full cut and Partial cut by command
Dimensions: (W x D x H) 106 x 170 x 138 mm
Weight: 950 g
Operating voltage: 24 V +/- 5%
Power consumption: Approx. 1,5 A (Print ratio 25%)
Operating temperature: -20 – 60°C
Printer Life: Thermal head: 150 km (150 million pulse)
Cutter: 1.5 million cuts
